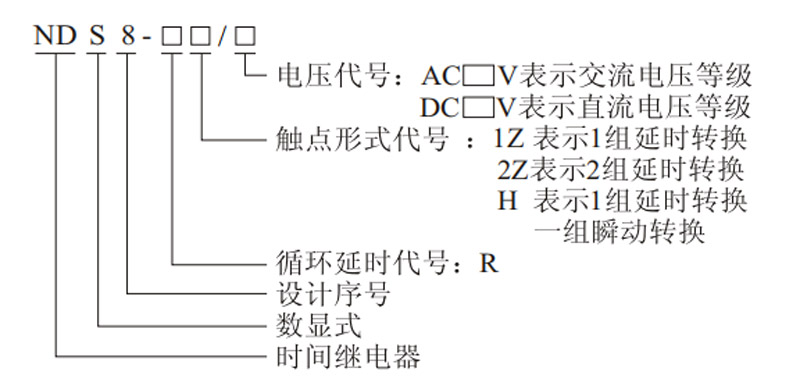

產品類型

NDS8-1Z,NDS8-2Z

NDS8-H

NDS8-R

延時范圍

0.01s~99.99s; 1s~99min99s;

1min~99h99min

0.01s~99.99s; 1s~99min99s;

1min~99h99min

0.1s~9.9s;0.1min~9.9min;

1s~99s;1min~99min;

10s~990s;0.1h~9.9h;1h~99h

設定方式

5位按鍵設定

5位按鍵設定

6位按鍵設定

動作形式

通電延時

通電延時

通電延時

額定電壓

AC380V, 220V, 127V, 110V, 36V, 24V, 50Hz ; DC24V

重復誤差

≤1%

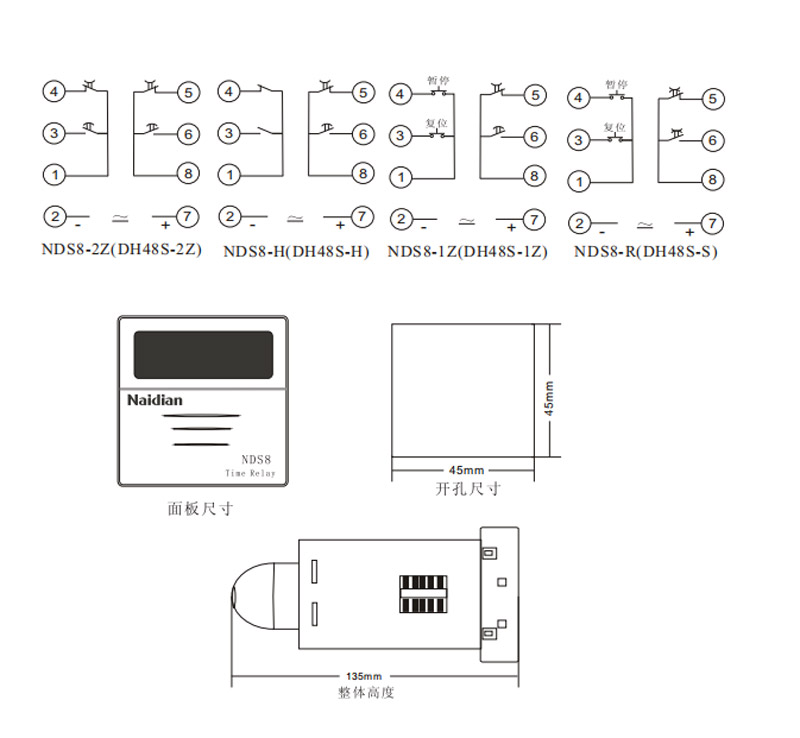

觸點數量

NDS8-1Z一組延時轉換，2Z二組延時轉換;

-H一組延時轉換一組瞬動轉換; -R一組循環延時轉換

觸點容量

AC220V 3A  COSФ=1; DC24V 5A

機械壽命

1×106

電壽命

1×105

安裝方式

面板式，裝置式
